Weapon-mounted sensor · Magpul MOE & K2 grips

VICE Core

It installs inside a Magpul® MOE or K2 grip on a standard AR platform, adds 0.40 oz, and sends a shot notification and weapon telemetry to ATAK on the phone you already carry, and on to your EOTAK™ Server.

$299.99
PER MODULE
Request information

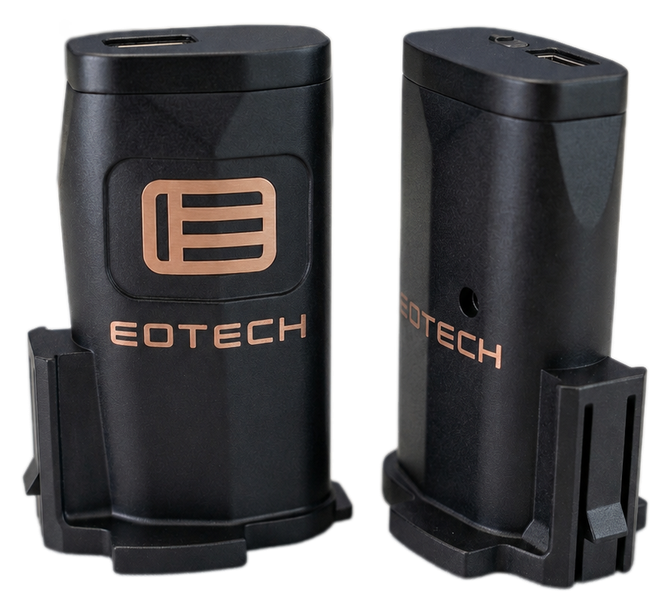

Two VICE Core modules, front and rear
Platform
Magpul MOE & K2 grips
Mount
Inside the grip
Weight added
0.40 oz
Wireless
2.4 GHz BLE compatible
01

What it does

Onboard motion analysis, read at the weapon itself. It lives inside the grip the rifle already has, so nothing is added to the outside of the weapon, and no rail space is spent.

Weapon telemetry

Roll, pitch and yaw, transmitted to connected TAK devices.

Shot detection

Rounds fired, detected on the module from motion alone.

02

The module

Four things it was built to do, and nothing it was not.

Seamless integrationInstalls into Magpul® MOE and K2 grips without altering how the firearm functions. It adds 0.40 oz to the rifle and nothing at all to its outside profile.
Situational awarenessTransmits weapon orientation (roll, pitch and yaw) along with shot-detection data to connected TAK devices.
Smart detectionOnboard motion analysis identifies rounds fired. The module is the sensor. Nothing else goes on the weapon.
Efficient powerA rechargeable 350 mAh battery, charged over USB without removing the module from the firearm.
03

Braveheart ATAK plugin

The module reaches ATAK through the Braveheart plugin. It is the piece that turns a detected shot into something the rest of the net can read. It runs inside ATAK on Android, on the device your people already carry.

ATAK on Android showing a satellite map with EOTech markers, firing-point markers, a grid overlay and a callsign readout
Braveheart · ATAK on Android
Three connections, one hubPrimary, secondary and AUX run independently, so a VICE module, a laser range finder and other peripherals can be connected at once. When a module detects a shot, the plugin writes a Cursor on Target message carrying the weapon’s location and orientation.
SmarTak® APIPast the shot itself, the plugin uses the API’s Status code to pass weapon usage and unit state and a designated target location from one node to another in a target handoff message.
Weapon and ammunition codesThe SmarTak API’s Weapon and Ammunition (WnA) code declares the exact weapon and load a module is fitted to, so what is reported matches what is actually being carried rather than a generic default.
04

Technical specifications

Platform compatibility
Magpul® MOE and K2 grips, standard AR platforms
Mount
Inside the grip
Capabilities
Shot detection · weapon telemetry (roll, pitch, yaw)
Wireless
2.4 GHz BLE compatible
Weight
0.40 oz
Dimensions
[DIMENSIONS TO CONFIRM]
Battery
Rechargeable · 350 mAh
Charging
USB · in place, without removing the module from the firearm
Firmware
Over Bluetooth from EOTAK™ Stack · Android and iOS
Model
VICE-CORE
In the box
  1. 01VICE Core module
  2. 02USB charging cable
  3. 03Operator manual
VICE Core

Ask us about
a module.

$299.99 per module. Availability and lead time are quoted. Tell us how many rifles you need to cover and we will come back with both.
